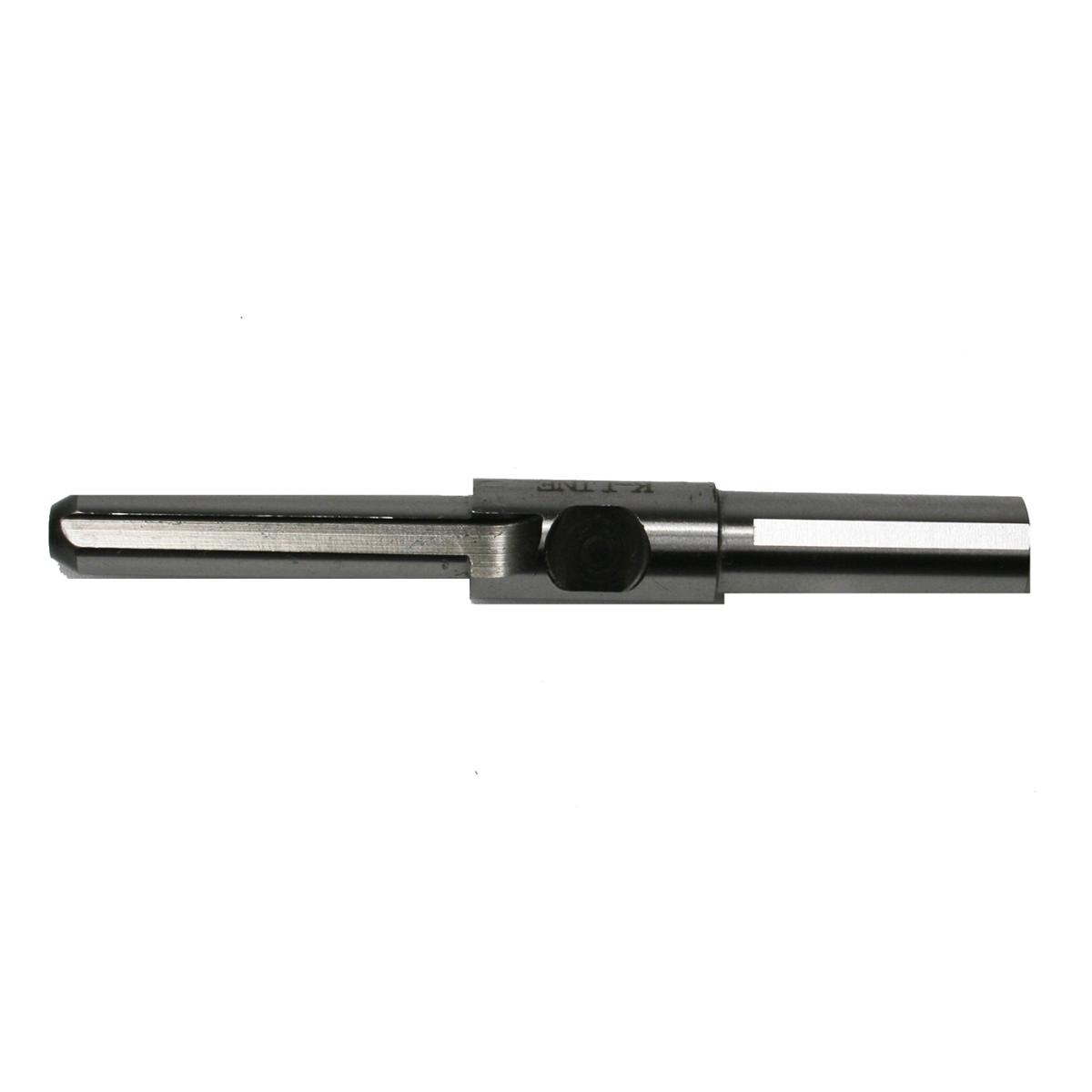

7mm Pilot fits spring seat cutter bodies and valve guide outer diameter cutters, pilots are available for different valve guide IDs
Machine valve spring seats for proper installed spring height and spring cup/seat fitment. Cutter bodies and pilots are interchangeable, Hardened pilots fit all 3/8 and ½ hand drills.
Pilots:
9025: Fits valve guides with 5/16 - 8mm valves, EVO & TC up to 2004, EVO Sportster 86-up
9026: Fits valve guides with 7mm valves, TC 2005 and newer
9027: Fits valve guides with 3/8 valves, Pan & Shovel 1948-1983
9024: Fits valve guides with 6mm valves, M8 17 and newer
9028: Fits valve guides with 11/32 valves
Spring Seat Cutters:
9023: Cutter cuts Spring Seat .550 ID x 1.180 OD - Fits M8 cylinder heads
9020: Cutter cuts Spring Seat .625 ID x 1.570 OD
9021: Cutter cuts Spring Seat .625 ID x 1.635 OD
9022: Cutter cuts Spring Seat .625 ID x 1.750 OD
Valve Guide OD Cutters
9031: Valve guide cutter, cuts guide OD to .420 for use with Feuling valve seals #1075 (EVO, XL, T/C 99-04 with 5/16 valves)
9032: Valve guide cutter, cuts guide OD to .500 for use with Feuling valve seals #1078
9033: Valve guide cutter, cuts guide OD to .530 for use with Feuling valve seals #1077 (SE T/C heads)
