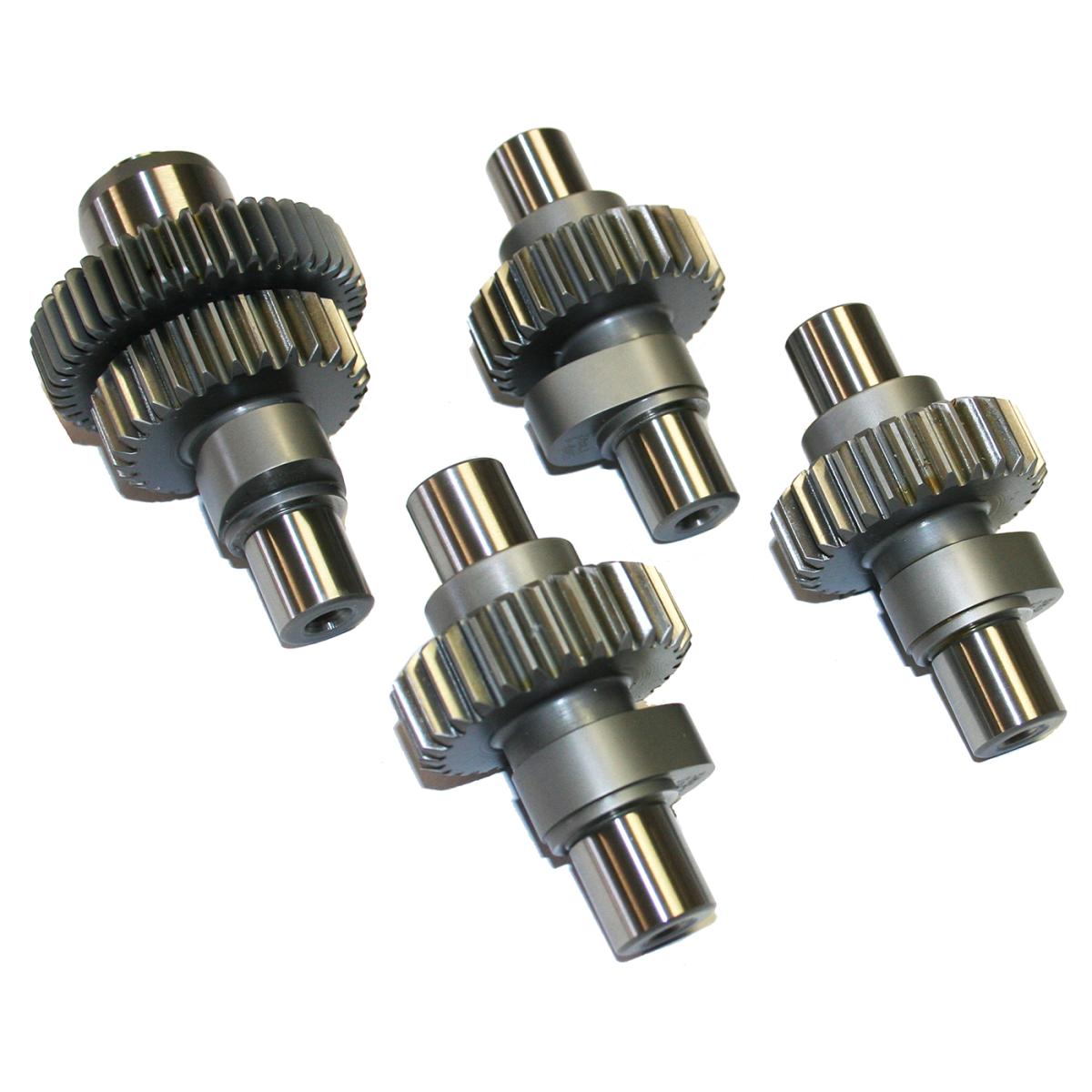

PART # 1370 505/515 Bolt-in REAPER cams for XLs producing a wide power band in stock engines, a great way to take a Sporty to a hot new level of performance. Split lift camshaft with .505 lift on the intake and .515 lift on the exhaust produce a solid power band with top fuel sound. Can be used with stock pushrods and valve-springs, FEULING recommends matching new camshafts with new lifters but not required.

Fits: 00-22 XL and 00-02 Buell as a direct bolt-in replacement for fine pitch pinion gear, cam set also fits 91-99 but requires pinion gear swap using HD # 24047-00 to convert the 91-99 wide pitch pinion gear to a fine pitch setup.

DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES


Valve Lift Open Close Duration @ 53 lift @ TDC Lobe Centerline
Intake .505 11 48 239 .137 108.5
Exhaust .515 53 15 248 .150 109
RPM range: 2,100 - 6,800+ Grind: 515 Overlap: 26
