594 CAMS - Fierce performing camshaft for an array of engines sizes, large displacement 103, 110 & 124 engines looking for a superior torque band with excellent horsepower gains in heavy bikes (RPM 2,200 - 6,250.) Smaller high revving displacement 95 style engines in lighter bikes looking to twist the throttle and tap into some horsepower (RPM 2,500 - 6,800). Large displacements respond well to increased compression ratio and smaller displacements will require it. 594 cams require high performance valve springs, pushrods, lifters, carburetor and or throttle body work, performance exhaust, intake and clutch.

UPDATE YOUR OLD MECHANICAL STYLE CAMS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEM

Conversion camshafts for 99-06 Twin Cam engines utilize the 99-06 inner cam journals with the 07-16 outer cam journals allowing the use of the 07-16 camplates, oil pump, hydraulic chain tensioners and chain drive system.

*Conversion camshafts do not fit in a conversion camplate, conversion camshafts use the 07-17 camplate/oil pump

Twin Cam Conversion Chain Drive 99 - 06 (Except 06 Dyna)
Part # 1016¹ - (525CC Conversion Cam) - 525 Intake, 535 Exhaust
Part # 1015¹ - (543CC Conversion Cam) - 543 Intake, 553 Exhaust
Part # 1017¹ - (574CC Conversion Cam) - 574 Intake, 574 Exhaust

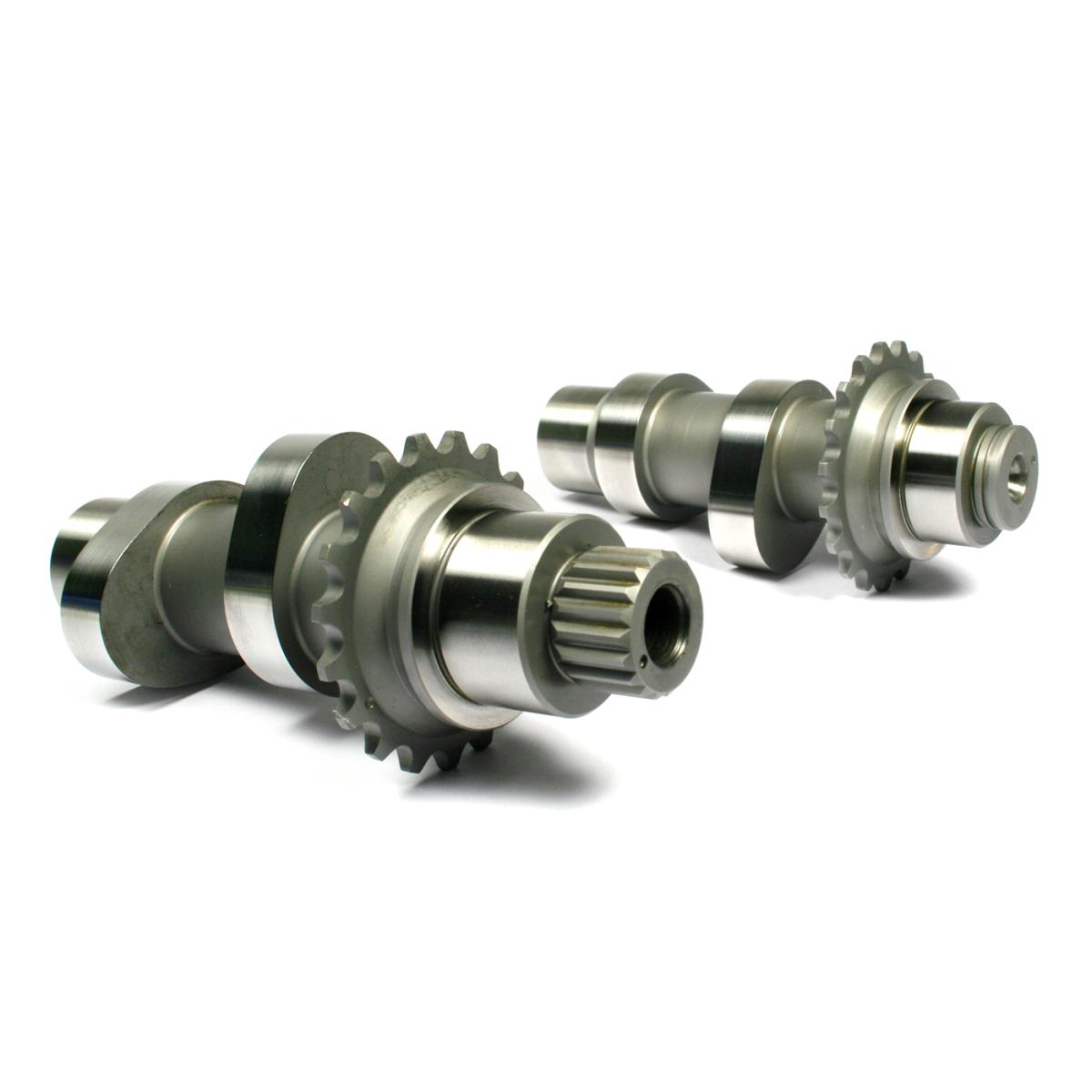

Part # 1019¹ - (594CC Conversion Cam) - 594 Intake, 604 Exhaust
Part # 1018¹ - (630CC Conversion Cam) - 630 Intake, 630 Exhaust
¹Factory hydraulic tensioners, outer cam & crank sprockets and thrust washers required, purchased separately - See #8080 & #8083


DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES


REQUIRED COMPONENTS FOR CONVERSION CAMSHAFTS - SEE KIT #8080 & 8083 / #7087 & 7088

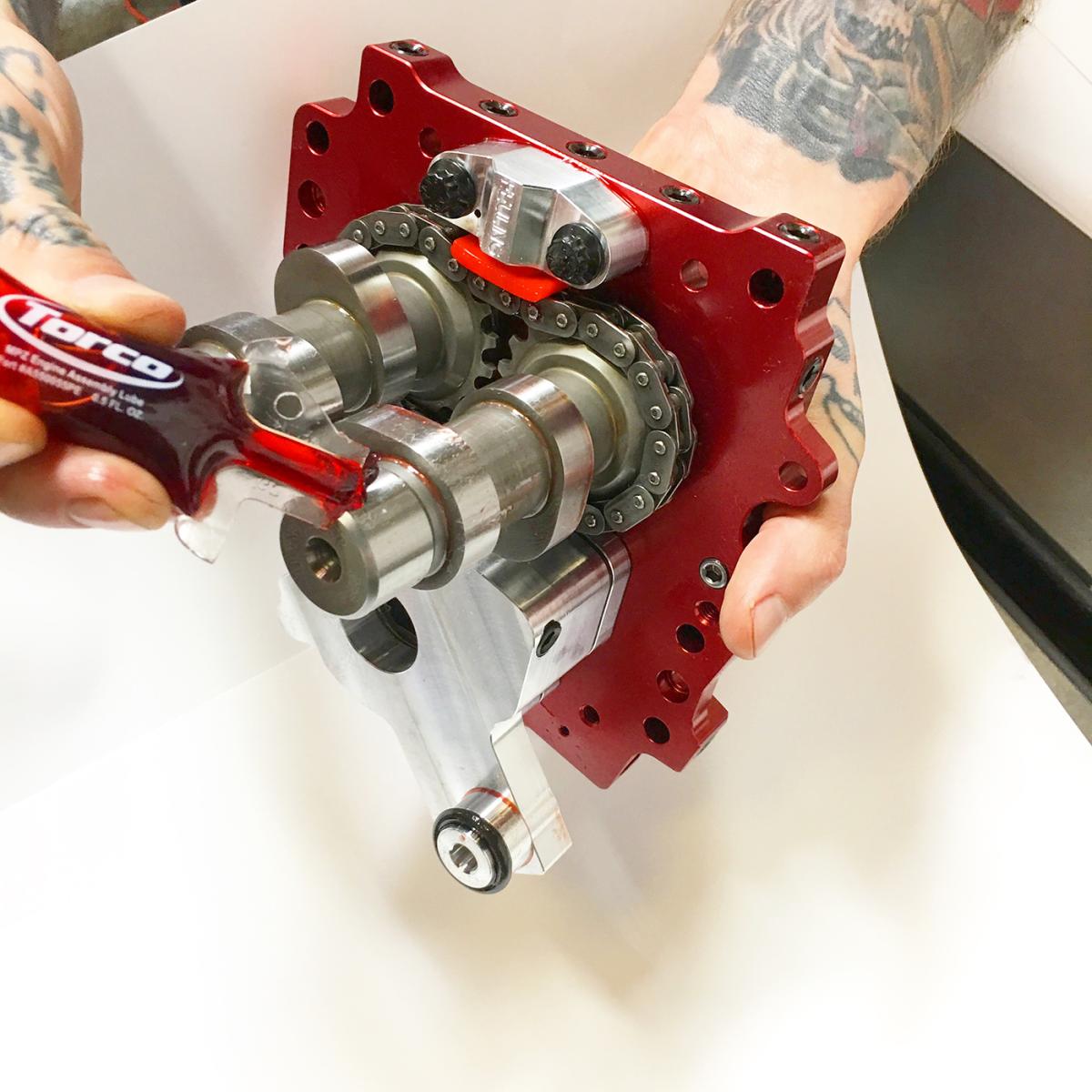

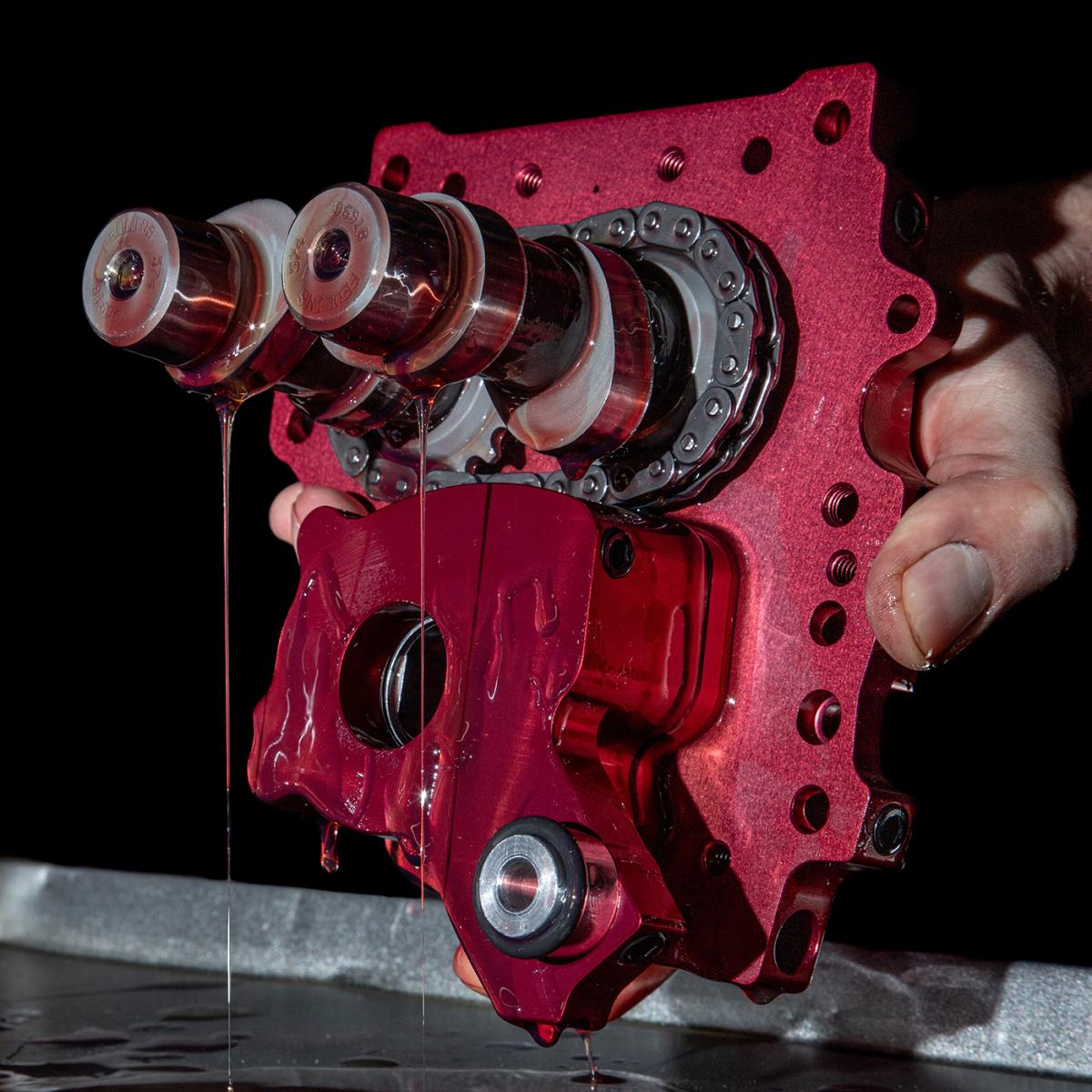

Installing conversion camshafts in 99-06 style T/C engines, require use the 07-17 style camplate and oil pump along with the following:

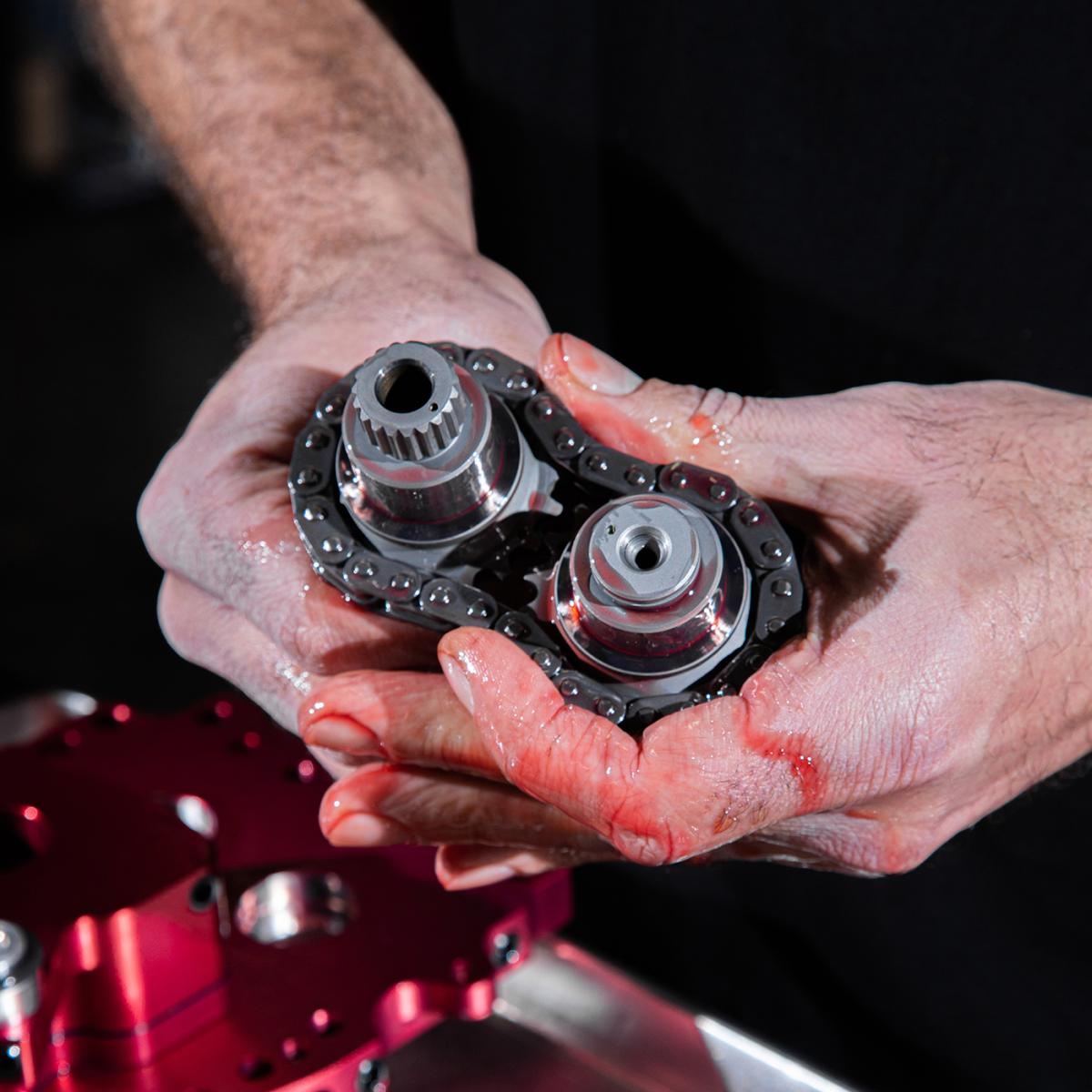

Qty. 1 FEULING #8061 HD # 25675-06 Outer chain
Qty. 1 FEULING #8060 HD # 25683-06 Inner chain
Qty. 1 FEULING #1091 HD # 25673-06 Outer crank sprocket 17 tooth
Qty. 1 FEULING #1092 HD # 25728-06 Outer cam sprocket 34 tooth
Qty. 1 FEULING #8075 HD # 39968-06 Outer hydraulic tensioner unit
Qty. 1 FEULING #8076 HD # 39969-06 Inner hydraulic tensioner unit
1 - Bolt kit (2 - 1/4-20 x 3/4) (2 - 1/4-20 x 1-1/4)
Qty. 1 FEULING #8041 Spacer kit Includes the following note installation requires qty. 2 of the following spacers, NOTE: correct spacer thickness is a must for proper sprocket alignment
1-# 25729-06 Thrust washer - front cam .100
1- # 25731-06 Spacer (.110 for cam alignment; use as required)
1 - #25734-06 Spacer (.120 for cam alignment; use as required)
1 - #25736-06 Spacer (.130 for cam alignment; use as required)
1 - #25737-06 Spacer (.140 for cam alignment; use as required)
1 - #25738-06 Spacer (.150 for cam alignment; use as required)

NOTE: 99-01 engines with Magneti Marelli ignition requires use of Andrews sprocket #216015 in replacement of HD 34 tooth sprocket #25728-06 in order to install the new style outer cam chain
